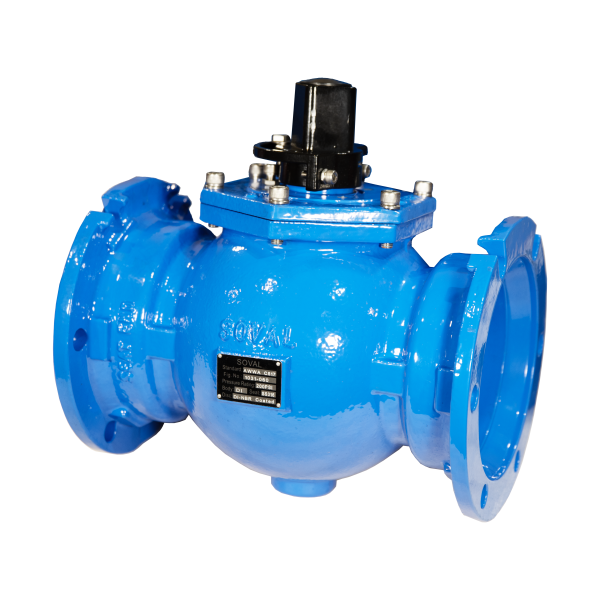

The SOVAL 1031 Series Mechanical Joint Plug Valves are constructed to ASTM A536 grade 65-45-12 ductile iron. The body and bonnet are Fusion Bonded Epoxy both internally and externally. The valve is pressure rated to 200 PSI with MJ ends that meet AWWA C111 Standard. The valve comes equipped with a V-Type self-adjusting packing. The plug is fully encapsulated with EPDM Rubber which also has a round port through 12” for better flow. We offer two types of operation, Travel Nut Actuator, and Worm Gear Operator.
Product Description
More Information
The SOVAL 1031 Series Mechanical Joint Plug Valves are constructed to ASTM A536 grade 65-45-12 ductile iron. The body and bonnet are Fusion Bonded Epoxy both internally and externally. The valve is pressure rated to 200 PSI with MJ ends that meet AWWA C111 Standard. The valve comes equipped with a V-Type self-adjusting packing. The plug is fully encapsulated with EPDM Rubber which also has a round port through 12” for better flow. We offer two types of operation, Travel Nut Actuator, and Worm Gear Operator.
SPECIFICATIONS
SEAT AREA WITH WELDED OVERLAY MINIMUM 90% PURE NICKEL
SHAFT SEALED BY THE MULTIPLE V-RING TYPE
FULL FLOW ROUND PLUG DESIGN; FULLY RUBBER COATED UP TO
12”; 14” TO 24” HAVE A CYLINDRICAL RUBBER SEALED SURFACE
BEARINGS OF SINTERED SS316, OIL IMPREGNATED PERMANENTLY
LUBRICATED
CLASS 125 FLANGES
WITH MECHANICAL-JOINT AWWA/ANSI C153/A21.53-00
MANUFACTURED TO AWWA C517 STANDARD
WORKING PRESSURE
250 PSI
WORKING TEMPERATURE
14°F TO 248°F FOR EPDM COATED PLUG
14°F TO 180°F FOR NBR COATED PLUG
CORROSION PROTECTION
INTERNALLY AND EXTERNALLY LIQUID EPOXY PAINTED OR FUSION BONDED EPOXY POWDER COATED (FBE)
