Butterfly Valves

Butterfly valves are used for on-off or modulated fluid control in various industrial applications. Butterfly valves are lightweight and compact, and can be used for both on-off and modulated fluid control. Soval supplies butterfly valves for industrial applications like water treatment facilities and industrial HVAC. Most of our butterfly valves feature a cast iron body with a durable and smooth epoxy finish.

Our butterfly valves are designed to offer superior flow control for liquid or gas, with quick shutoff capabilities and space-saving design. Soval offers a range of butterfly valves to suit various applications:

• 1040 Series - Ductile Iron Mechanical Joint Butterfly Valve: Soval AWWA butterfly valves are made out of ductile. According to AWWA C504, the section that sets standards for butterfly valves that will be used in water pipes, the valves should be bubble tight and able to shutoff completely.
• 1041 Series - Ductile Iron Flanged Butterfly Valve: AWWA butterfly valves are made out of ductile or cast iron. According to AWWA C504, the section that sets standards for butterfly valves that will be used in water pipes, the valves should be bubble tight and able to shutoff completely. Flanges must be used to install AWWA butterfly valves.
• 405 Series - PVC Wafer Style Butterfly Valves: Our 405 Series - PVC Wafer Style Butterfly Valves feature an EPDM rubber liner, which offers high tensile strength and tear resistance.
• 585 Series - PVC Wafer Butterfly Valves: The Soval 585 Series - PVC Wafer Butterfly Valves are the only PVC butterfly valves you need for all your flow control projects whether it's for irrigation, plumbing, utilities or more.
• 840 Series - Cast Iron Wafer Style Butterfly Valve (Ductile Disc): The SOVAL 840 Series Butterfly Valve is wafer style, epoxy coated with a Cast Iron Body and Ductile Iron Disc. The 840 Series butterfly valve is used to control liquid or gas flow through pipes. The rotating disc is controlled by a 10 position lever and locking system to easily throttle the flow.

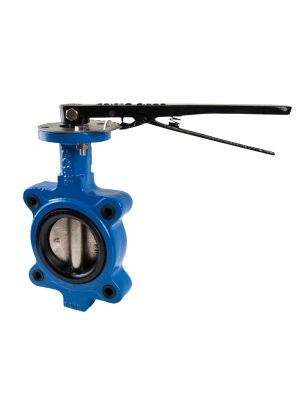

• 842 Series - Cast Iron Lug Style Butterfly Valve (Ductile Disc): The SOVAL 842 Series Butterfly Valve is Lug Style, epoxy coated with a Cast Iron Body and Ductile Iron Disc. The 840 Series butterfly valve is used to control liquid or gas flow through pipes. The rotating disc is controlled by a 10 position lever and locking system to easily throttle the flow.
• 845 Series - Cast Iron Wafer Style Butterfly Valve Lever Operated (Stainless Disc): The SOVAL 845 Series Butterfly Valve is Wafer Style, Epoxy Coated with a Cast Iron Body and Stainless Steel Disc. The 845 Series butterfly valve is used to control liquid or gas flow through pipes. The rotating disc is controlled by a 10 position lever and locking system to easily throttle the flow of media.
• 846 Series - Cast Iron Wafer Style Butterfly Valve Gear Drive (Stainless Disc): The SOVAL 846 Series Butterfly Valve is a Wafer Style, Epoxy Coated with a Cast Iron Body and Stainless Steel Disc. The 846 Series butterfly valve is used to control liquid or gas flow through pipes. The rotating disc is controlled by a gear driving that is operated by a handwheel which allows to easily throttle the flow of media.
• 848 Series - Ductile Iron UL/FM Wafer Style Butterfly Valve w/ Tamper Switch: The SOVAL 848 Series UL/FM Wafer Style Butterfly Valves has a Vulcanized Disc design that provides bubble-tight shut-off every time. Low torque operation – high cycle life. The 848 Series comes equipped with a gear drive operator which Includes a built-in Supervisory (Tamper) Switch. Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.
• 849 Series - Ductile Iron UL/FM Grooved End Style Butterfly Valve w/ Tamper Switch: UL / FM at 300 psi. Vulcanized Disc design provides bubble tight shut-off every time. Low torque operation – high cycle life. Gear Operated. Includes built-in Supervisory (Tamper) Switch. UL / FM Butterfly Valve – Grooved Ends to AWWA C606 Standard. Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.

Butterfly valves offer unique advantages over other valve types, like:

• Compact design: Our butterfly valves are ideal for large piping systems because of their compact and lightweight design.
• Flow control: The angle of the disc controls the flow rate through the valve. This means that our butterfly valves are well-suited for applications that require precise flow control.
• Wide size range: Our butterfly valves are available in a wide range of sizes for both small—and large-scale applications.Typically, our butterfly valves are available in sizes ranging from 2” to 8”, with options varied by type.
• Cost-effectiveness: Because of their relatively simple design, butterfly valves typically cost less to manufacture and maintain..
• Quick operation: Our butterfly valves operate on a quarter turn, which allows for rapid opening and closing. This makes them suitable for applications requiring quick shut-off or frequent operation.

Soval is proud to be a member of many recognized industries like American Water Works Association (AWWA), the Water Environment Federation, the Irrigation Association, and the PHCC. Our products are carefully designed to meet various standards set by these associations.

Many of our butterfly valves, like the 1040 Series and the 848 Series valves, meet the standards of the AWWA, which sets the standards for valves used in water pipes.

One of the biggest advantages of butterfly valves is that they’re incredibly versatile. We supply high-quality butterfly valves for industries like:

• Plumbing
• Irrigation
• Agriculture
• Fire protection

Contact Soval today if you need industrial butterfly valves for your operation. Our experienced team members will be happy to answer any questions you have.
