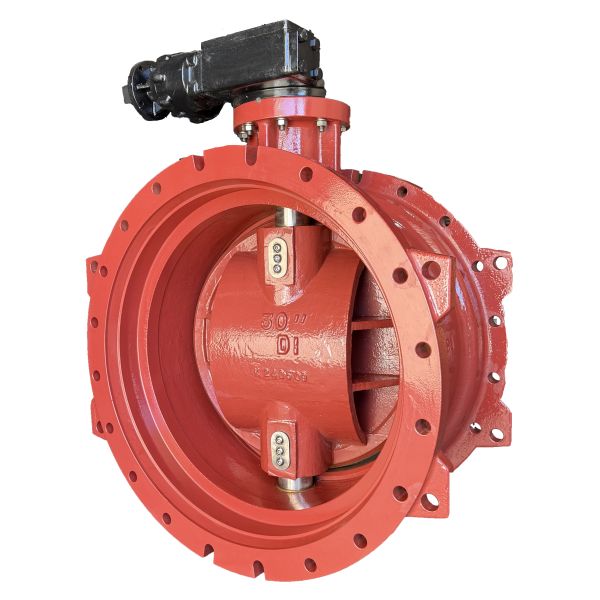

1043 Series Mechanical Joint Double Eccentric Butterfly Valve

Specifications

• 30"-48" comply with ANSI/AWWA C 504 - 2010
• EPDM ring clamped on disc
• Actuator ready with top flange in accordance with ISO5211-1
• Operated by gearbox
• Flanges to ANSI B16.1 Class 125
• NSF61

Working Pressure

• 250 PSI operating pressure (Class 250B)

Working Temperature

• 14°F to 248°F for EPDM liner

Corrosion Protection

• Internally and externally fusion bonded epoxy painted
